Active 2.3 Electric Pressure Washer

SKU SE10
$649.00

Notify me when back in stock

The Active 2.3 is a result of our ongoing research and refinement of the Active 2.0, designed specifically for professional users. Through continuous product testing and valuable consumer feedback, we achieved a breakthrough in creating a comprehensive solution that excels in both design and performance.

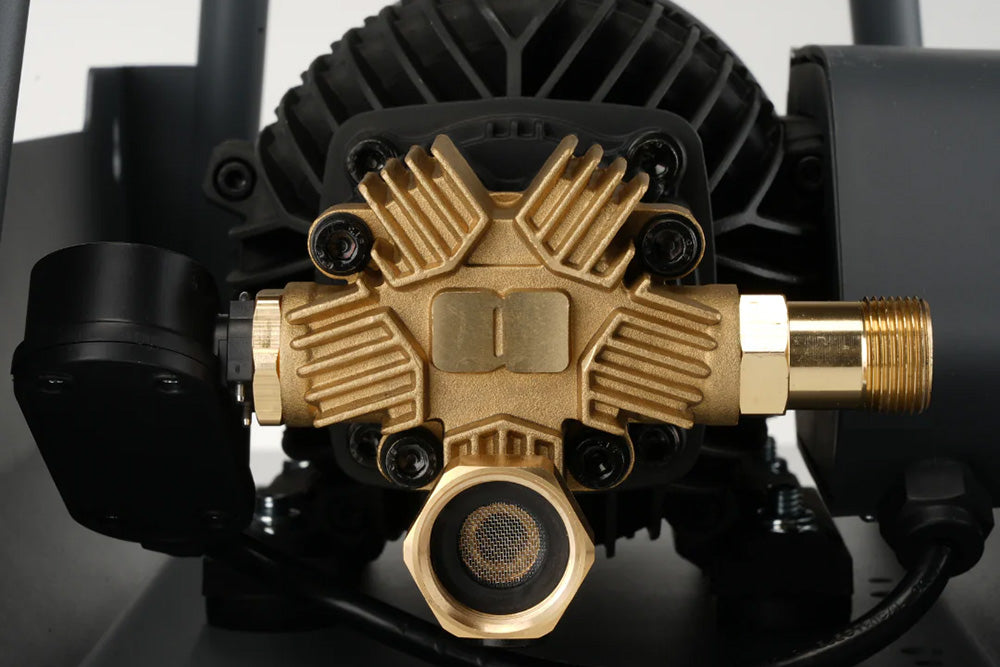

Equipped with an upgraded brass endplate 5-Piston Pro Pump and a 128 Induction Motor, the Active 2.3 delivers 2.3 GPM at 1100 PSI. With a total output of 2,500 cleaning units, this machine handles any cleaning task effortlessly. It’s powerful, serviceable, and fully rebuildable, making it the ideal tool for heavy-duty cleaning jobs.

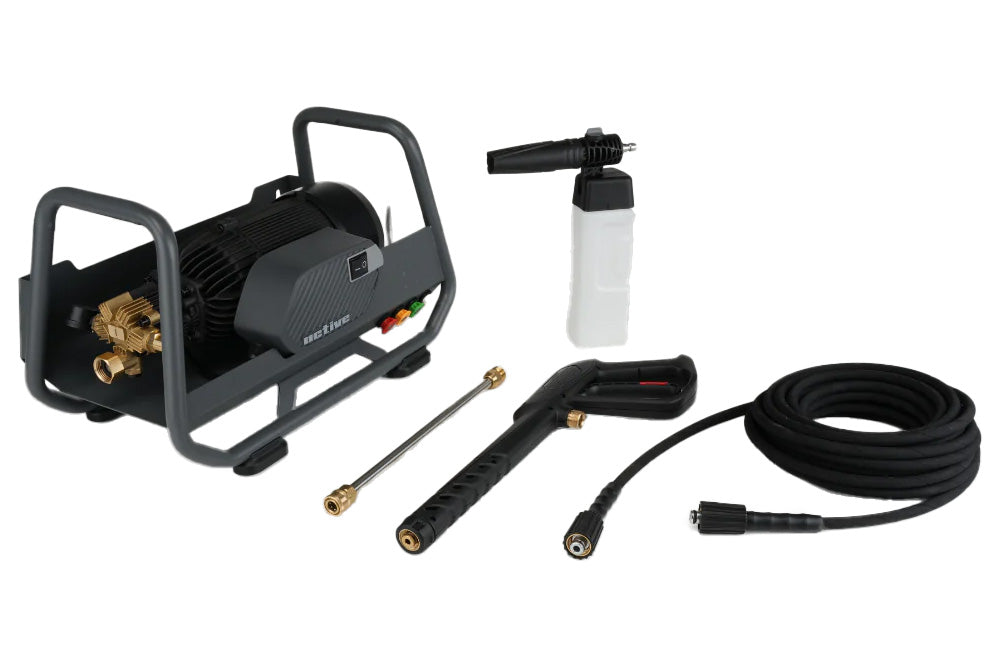

The package also comes with all the basic accessories you need to get started with. This includes:

  • 1.45mm nozzle for after market foam cannons to maintain current draw under 15A.

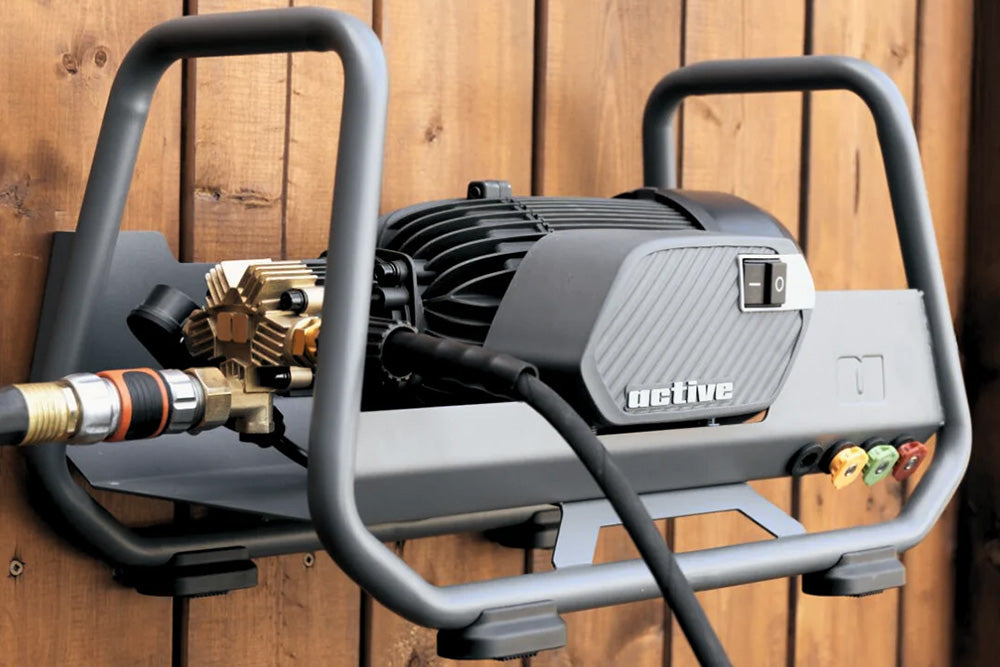

  • Bonus wall-mountable cage. The pressure washer is removable from its frame for a versatile cleaning experience.
  • 40’ steel braided rubber hose.
  • Metal pressure washer gun and lance.
  • Foam cannon and 4 nozzles (0,15,25,40).

Important Notes:

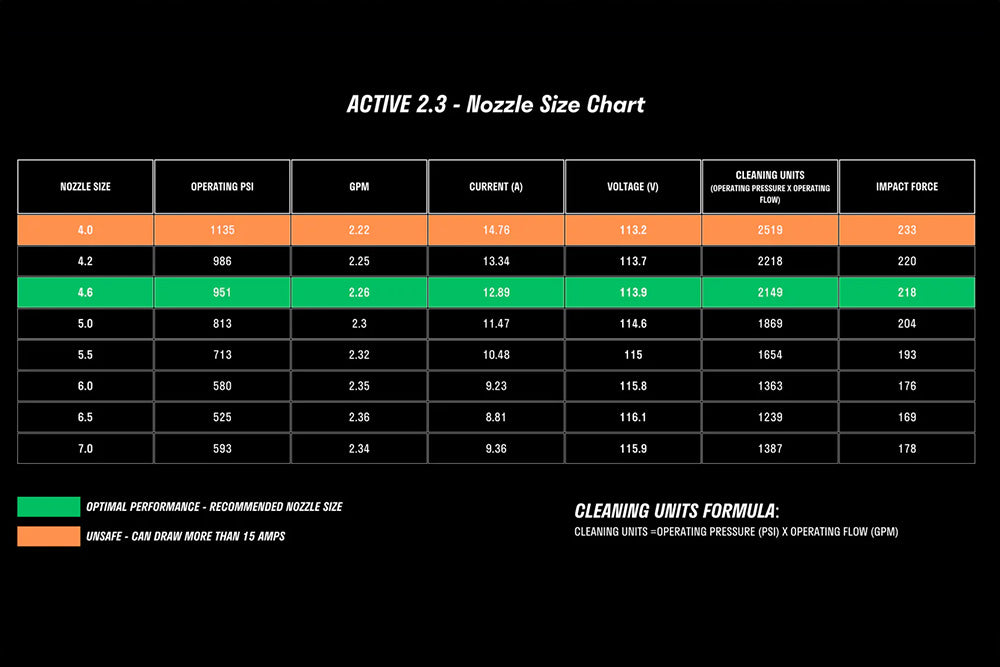

  • This unit is adapted to the 15A connections present in most homeowner garages and includes a 4.6 orifice size to help maintain current draw under 15A. Users are free to use other orifice sizes while making sure current draw doesn't go above 15A, otherwise it can cause damage to the microswitch and capacitor. Refer to the Nozzle Size chart in the product images for more info.
  • To ensure proper operation, steel-braided hoses are strongly recommended when using this unit.

Product Specifications

  • Load Voltage: 120V/60 Hz
  • Rated Current: 14A
  • Power Cord: 35 ft. 14 AWG with GFCI
  • Peak Pressure: 1500 PSI
  • Working Pressure: 1100 PSI
  • Water Flow: 2.3 GPM
  • Maximum Water Temperature: 104°F (40°C)

Dimensions:

With frame: 20.5 x 11.5 x 12.25 inches (520 x 290 x 310mm)

No frame: 17.5 x 9 x 6 inches (444.5 x 228.6 x 152.4mm)

Weight:

With frame: 45.5lbs (20kgs)

No frame: 29 lbs (13kgs)

Motor: 128 Induction

Pump: Patented 5 Piston Reinforced Brass

Hose: 40 ft. Rubber with M22-14 connectors

Soap Application: 750ml Foam Blaster

Gun Assembly: Metal Construction

Switch: Rocker Switch

FAQ

Electric input requirements to operate the Active 2.3?

The Active 2.3 is designed to run on a 15A circuit rated at 120V/60Hz. We discourage the use of extension cords, but if one must be used, we recommend using an extension cord not longer than 50’ and it must be rated for 14 AWG. When using foam cannons, we'll be providing a 1.45mm nozzle with the 2.3 so users can work with their after market foam cannons while maintaining current draw under 15A.

Pump adapter connection specs on the Active 2.3?

The pressure washer inlet size is ¾” with 11.5 TPI threads (this is the standard North American Garden Hose connector size). The outlet of the pressure washer is M22-14mm. When it comes to using accessories or quick connects, ensure the spec matches the pump requirements.

Nozzle orifice size compatible with the Active 2.3?

The Active 2.3 comes with a 4.6 orifice size. This is done to ensure the machine outputs the best balance of pressure and flow under 15A current draw. If you are to change the nozzles for varying applications, we recommend the use of nozzles between 4.2 to 6.0)

Foam cannon orifice size compatible with the Active 2.3?

The recommended foam cannon orifice size is a 1.5mm orifice to ensure the current draw is under 15A during normal foaming operations. We'll be providing a 1.45mm nozzle with the 2.3 so users can work with their after market foam cannons while maintaining current draw below 15A.

Pressure washer hose material and length compatible with the Active 2.3?

You can use any aftermarket hose with the Active 2.3 as long as it is compatible with the M22-14mm outlet adapter. The preferred hose type and length is steel braided rubber hose under 100 ft. in length. Non steel braided hosing may expand under pressure and prevent the pressure washer from reaching its peak pressure (continuous running)

What's the warranty? Do I need to register my Active 2.3 for it?

This pressure washer comes with a 2-year residential warranty and 1-year commercial warranty (read product manual for more details) This product requires registration prior to warranty support on the Active product registration portal. Ensure you have your purchase proof, purchase store, order ID and serial number for registration.

What if my pressure washer is not working as intended?

The first step to follow is to read your product manual for troubleshooting. We will soon be providing videos on product maintenance, upkeep and troubleshooting so this will be an additional resource as a troubleshooting guide. If product troubleshooting does fail, please ensure you email us at support@activeproducts.com for agent support. Make sure to register your product prior to contacting us.
