Active 2.0 Electric Pressure Washer

The Active 2.0 was created with a commitment to building the perfect machine for DIY detailers. Designed from the ground up based on consumer feedback, industry insights from our partners and distributors, and over 20 years of experience in crafting electric pressure washers, the Active 2.0 stands as a testament to quality and performance.

It features our proprietary 5-Piston Pro Pump and the durable Universal 9650 Motor, delivering 2.0 GPM at 1000 PSI—ideal for automotive detailing and household tasks. With this powerful combination of pressure and flow, the Active 2.0 guarantees top-tier performance.

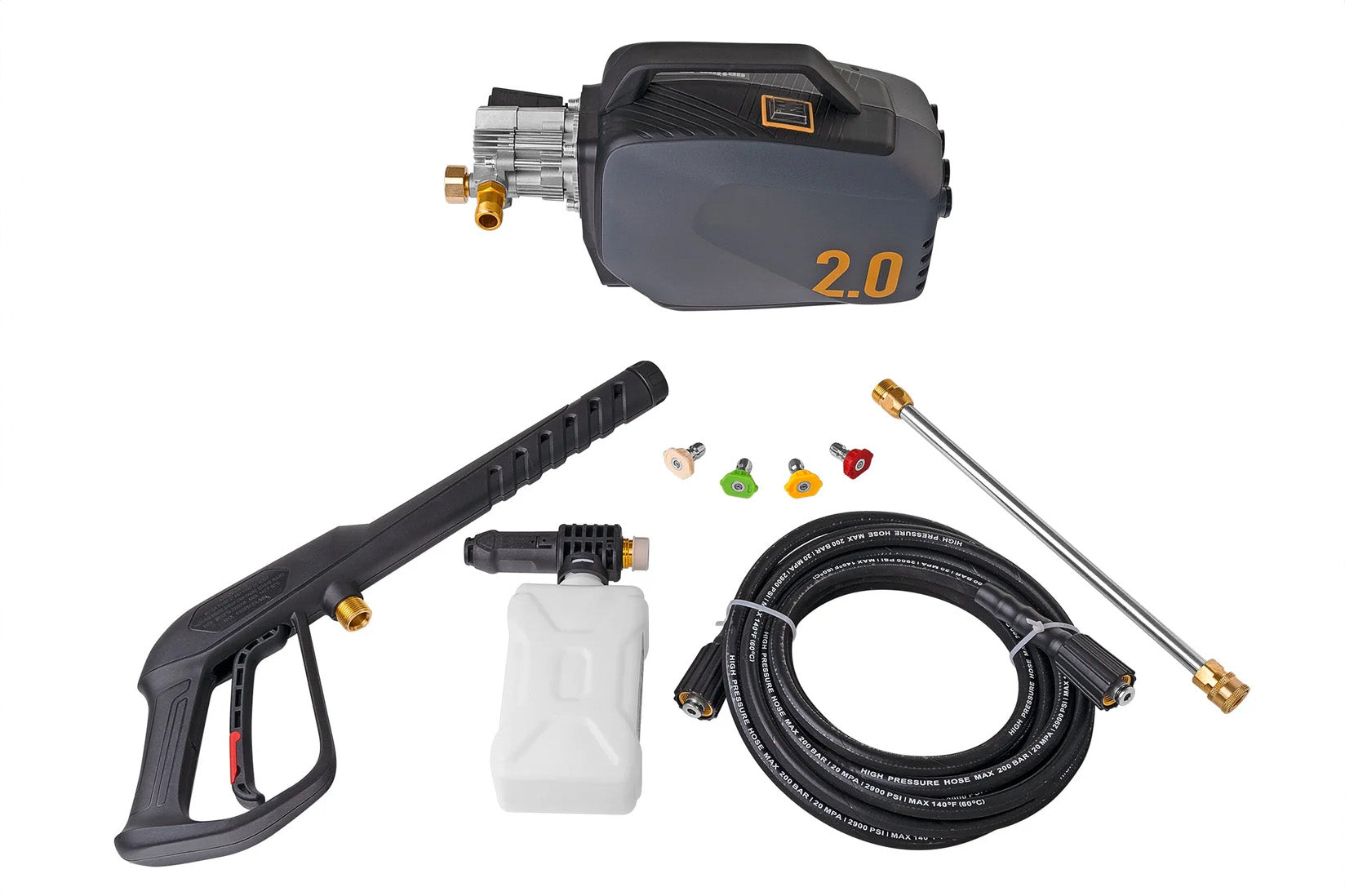

The package includes all the essential accessories to get started: a 20’ steel-braided rubber hose, metal pressure washer gun and lance, foam cannon, and four nozzles (0, 15, 25, 40) for a versatile cleaning experience.

Important Notes:

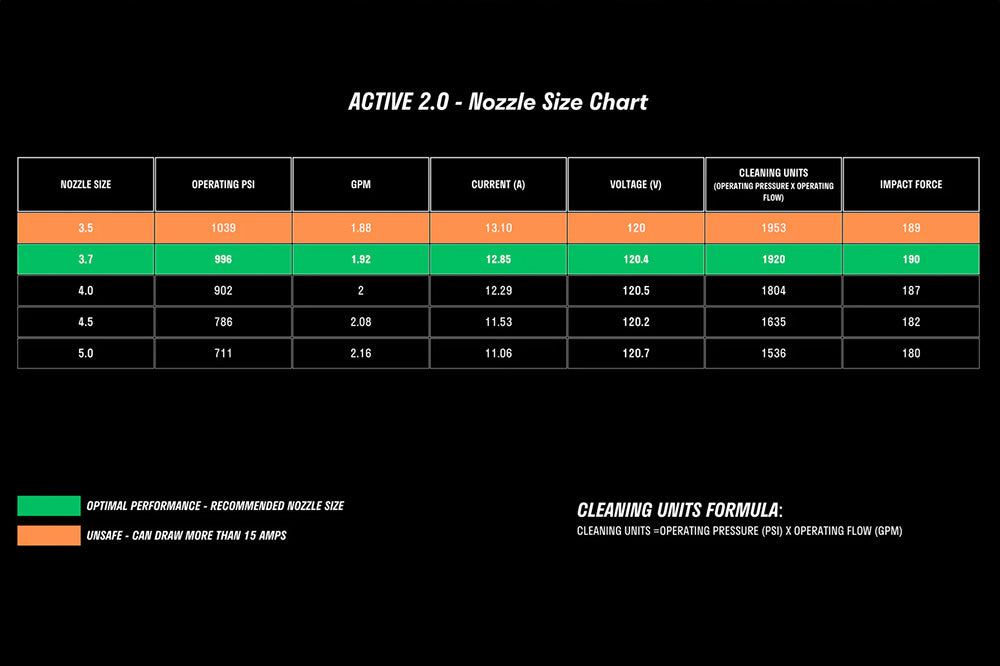

• This unit is adapted to the 15A connections present in most homeowner garages. Users are free to use other orifice sizes while making sure current draw doesn't go above 15A, otherwise it can cause damage to the microswitch and capacitor. Refer to the Nozzle Size chart in the product images for more info.
• To ensure proper operation, steel-braided hoses are strongly recommended when using this unit.

Product Specification

Load Voltage: 120V/60 Hz

Rated Current: 14A

Peak Pressure: 1800 PSI

Working Pressure: 1100 PSI

Water Flow: 2 GPM

Maximum Water Temperature: 104°F (40°C)

Motor: 9650 Universal Reinforced

Pump: Patented 5 Piston Reinforced

Hose: 20 ft. Rubber - M22-14

Power Cord: 35 ft. 16 AWG with GFCI

Soap Application: 600ml Foam Blaster

Gun Assembly: Metal Construction

Switch: Rocker Switch

Garden Hose: Requires 3/4 inch standard garden hose adapter

FAQ

Electric input requirements for the Active 2.0?

The Active 2.0 is designed to run on a 15A circuit rated at 120V/60Hz. We discourage the use of extension cords, but if one must be used, we recommend using an extension cord not longer than 50’ and it must be rated for 14 AWG.

What power source should I use in a mobile set-up?

The Active 2.0 requires a generator or power bank with rated running watts of 1800W and surge watts of 2100W. Meeting the spec will ensure you can operate the pressure washer without any disruptions.

Inlet pressure and flow specs to use the Active 2.0?

The pressure washer operating output is a 1100 PSI and 2.0 GPM. The minimum required inlet pressure and flow is 40 PSI and 4.8 GPM to ensure the washer operates as intended.

Pump adapter connection specs on the Active 2.0?

The pressure washer inlet size is ¾” with 11.5 TPI threads (this is the standard North American Garden Hose connector size). The outlet of the pressure washer is M22-14mm. When it comes to using accessories or quick connects, ensure the spec matches the pump requirements.

Nozzle orifice size compatible with the Active 2.0?

The Active 2.0 comes with a 3.7 orifice size (est. 1.3mm) This is done to ensure the machine outputs the best balance of pressure and flow under 15A current draw. If you are to change the nozzles for varying applications, we recommend the use of nozzles between 3.5 to 5.0)

Foam cannon orifice size compatible with the Active 2.0?

The recommended foam cannon orifice size is a 1.25mm orifice to ensure the current draw is under 15A during normal foaming operations.

Pressure washer hose material and length compatible with the Active 2.0?

You can use any aftermarket hose with the Active 2.0 as long as it is compatible with the M22-14mm outlet adapter. The preferred hose type and length is steel braided rubber hose under 100 ft. in length. Non steel braided hosing may expand under pressure and prevent the pressure washer from reaching its peak pressure (continuous running)

What's the warranty? Do I need to register my Active 2.0 for it?

This pressure washer comes with a 2-year residential warranty (read product manual for more details) This product requires registration prior to warranty support on the Active product registration portal. Ensure you have your purchase proof, purchase store, order ID and serial number for registration.

What if my pressure washer is not working as intended?

The first step to follow is to read your product manual for troubleshooting. You can also follow our troubleshooting videos, find them here: https://www.youtube.com/playlist?list=PLTg8ackn7qU9SncoxKVUKiTfZcjeS3vNO If product troubleshooting does fail, please ensure you email us at support@activeproducts.com for agent support. Make sure to register your product prior to contacting us.
