Twister Blow Out Tool Repair
The General Car Care Twister Pneumatic Blow-Out Tool is one of the most satisfying tools in any detailer's arsenal — that twisting air stream makes quick work of dust, debris, and moisture hiding in every crack and crevice of a vehicle. But like any pneumatic tool, it requires a little TLC to keep performing at its best.
Why does the Twister stop spinning?
If the spinning action slows down or stops altogether, moisture is almost always the culprit. Air compressors generate a significant amount of moisture in the line — especially in humid environments — and over time that moisture works its way into the internal bearings, causing rust and buildup that brings the spin to a halt.
Prevention tips
- Drain your compressor daily. When you crack the drain valve, don't be surprised to see rusty water come out — that's exactly the kind of moisture that ends up in your tool.
- Use an inline moisture filter. Installing one on your air line is an inexpensive way to reduce the amount of water vapor reaching your tools.

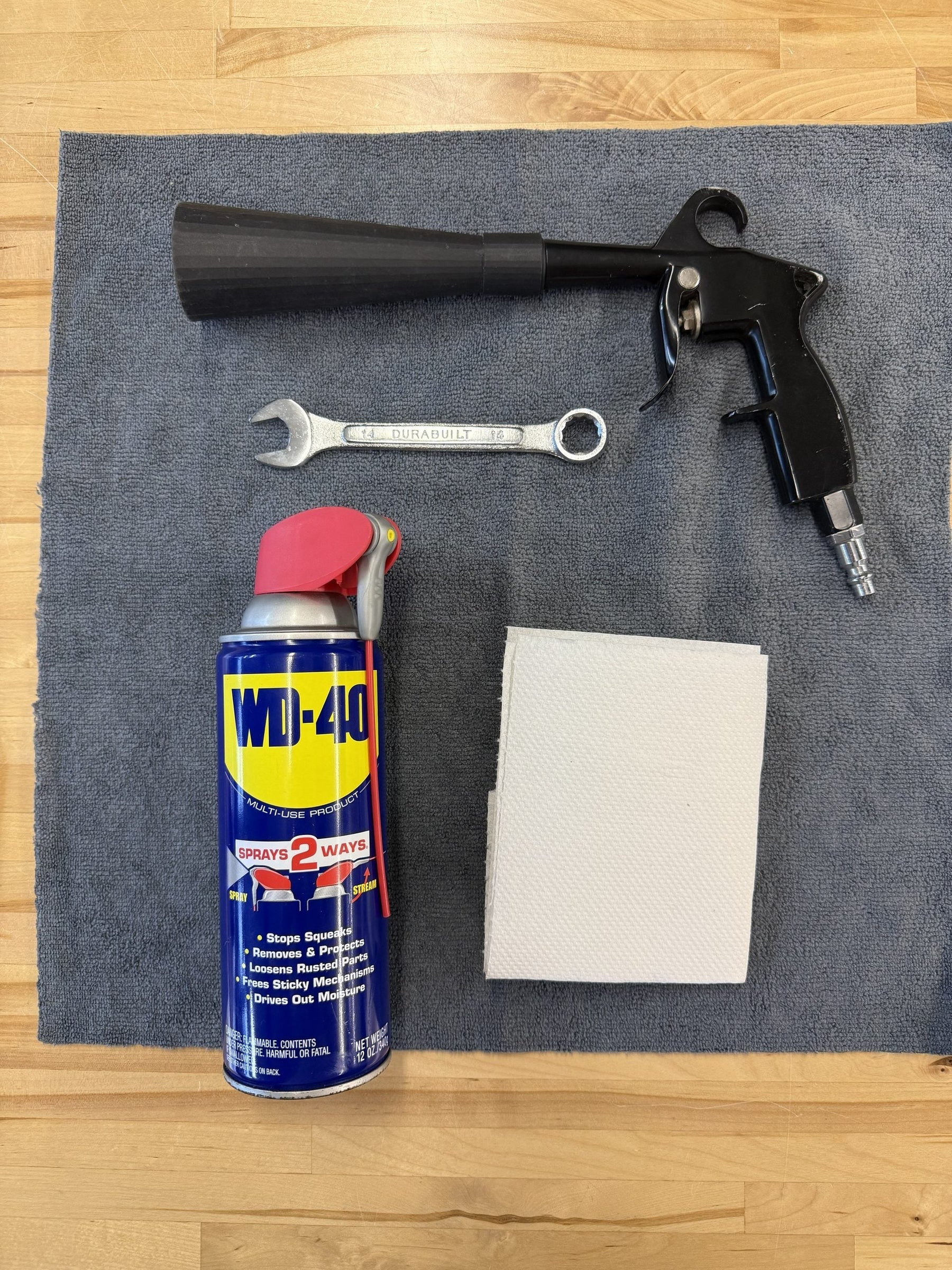

What you'll need
Twister Blow-Out Tool
WD-40 or 3-in-1 oil
Size 14 combination wrench
Paper towels
Shop towel / microfiber
Small container (for soaking)
Lay everything out on a towel before starting to keep small parts from rolling away and protect your work surface.
Step-by-step: disassembly & cleaning
1
Set up your workspace
Lay a clean shop towel or microfiber flat on your work surface and place all your tools and supplies on it. This keeps small parts contained and protects your surface from WD-40 drips.
2
Disassemble the nozzle
The spinning action is powered by an internal rod assembly that houses three small bearings. Use your size 14 wrench on the brass retaining nut at the base of the nozzle tube to unscrew it. Hold the nozzle tube steady with your other hand as you loosen the nut.
All components: cone, nozzle tube, gun body, inner bearing rod, and brass nut.
The size 14 wrench fits perfectly on the brass retaining nut.
Once the nut is removed, slide the inner bearing rod assembly out of the nozzle tube.
3
Apply WD-40 to the bearing assembly
With the inner assembly removed, spray WD-40 liberally onto the bearing assembly and let it sit for a minute to begin breaking down rust and grime. Wipe away the initial discharge on a paper towel — you'll likely see dark brown residue, which is the rust and old grease being displaced.
The bent tip, cylindrical spacer, and three bearings are now accessible.
Dark brown residue on the paper towel shows the rust and buildup being displaced.
4
Remove & deep clean the bearings
For a thorough clean, slide the three bearings and the cylindrical spacer off the inner rod. Place them in a small container and submerge in WD-40 or 3-in-1 penetrating oil. Let them soak for several minutes — you'll often see bubbling as the cleaner works into the bearing races and breaks loose debris.
The bent rod, two sealed bearings, metal spacer, and third bearing fully separated.
Bubbling action as the penetrating oil breaks down rust and debris inside the bearing races.
After soaking, remove the bearings and wipe clean with a fresh paper towel. Spin each bearing with your finger — they should rotate smoothly and freely. If they still feel rough or gritty, repeat the soak.
5
Reassemble
Slide the bearings back onto the inner rod in the same orientation you removed them. The spacer sits between the bearing sets — getting this right ensures the tool spins correctly. Reference the photo in Step 4 if needed.
Slide the assembly back into the nozzle tube, thread the brass retaining nut on by hand, then tighten snugly with your size 14 wrench. Don't overtighten — just firm enough to secure it.
6
Test
Connect to your air compressor and give it a trigger pull. The nozzle should spin freely with that Twister action fully restored. If it's spinning but feels sluggish, a second round of cleaning may be needed.
The fully reassembled Twister, ready to get back to work.
When it's time for replacement parts
If the bearings are too corroded or damaged to restore through cleaning, don't toss the whole tool. We carry the complete Twister Replacement Nozzle & Bearings — a cost-effective way to bring your Twister back to like-new condition without buying an entirely new tool.
Quick reference: maintenance tips
- Drain your air compressor tank regularly
- Install an inline moisture filter on your air line
- Deep clean the bearings at the first sign of sluggish spinning — don't wait until they fully seize
- Always fully blow out the tool after any oil application before using it on a vehicle
